Circuit Sim - Simplifying Circuit Simulation

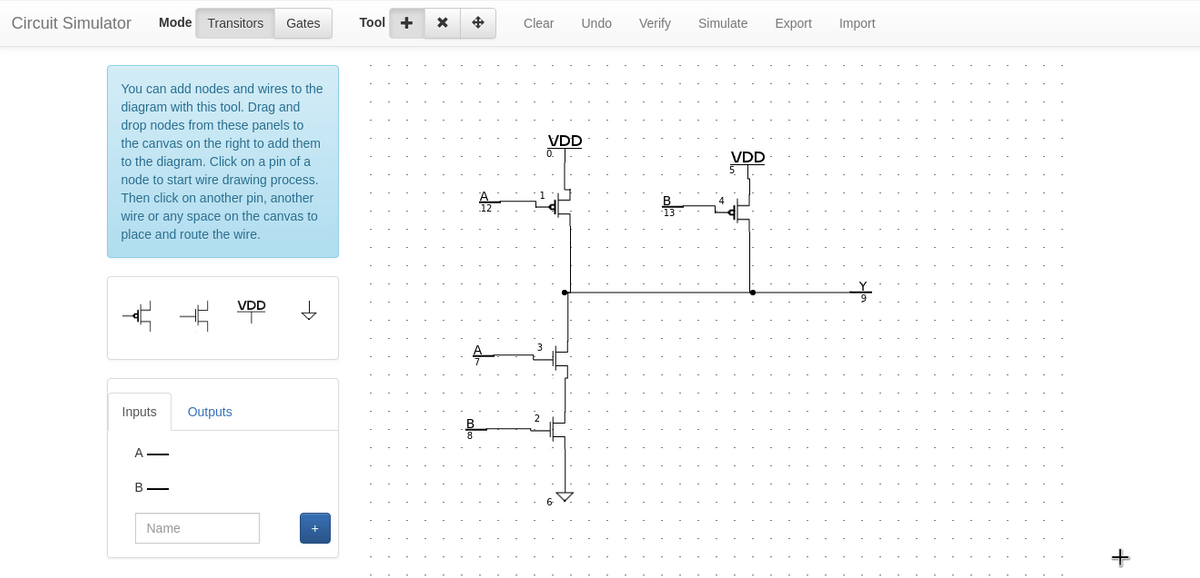

A fully client-side circuit (gate & transistor) diagrammer and simulator. It was created in order to help students in COMP411 learn and experiment with circuit networks. It also uses HTML5/Canvas for rendering of circuit diagrams and a custom-built library for simulating both circuit logic.

Demo Site
